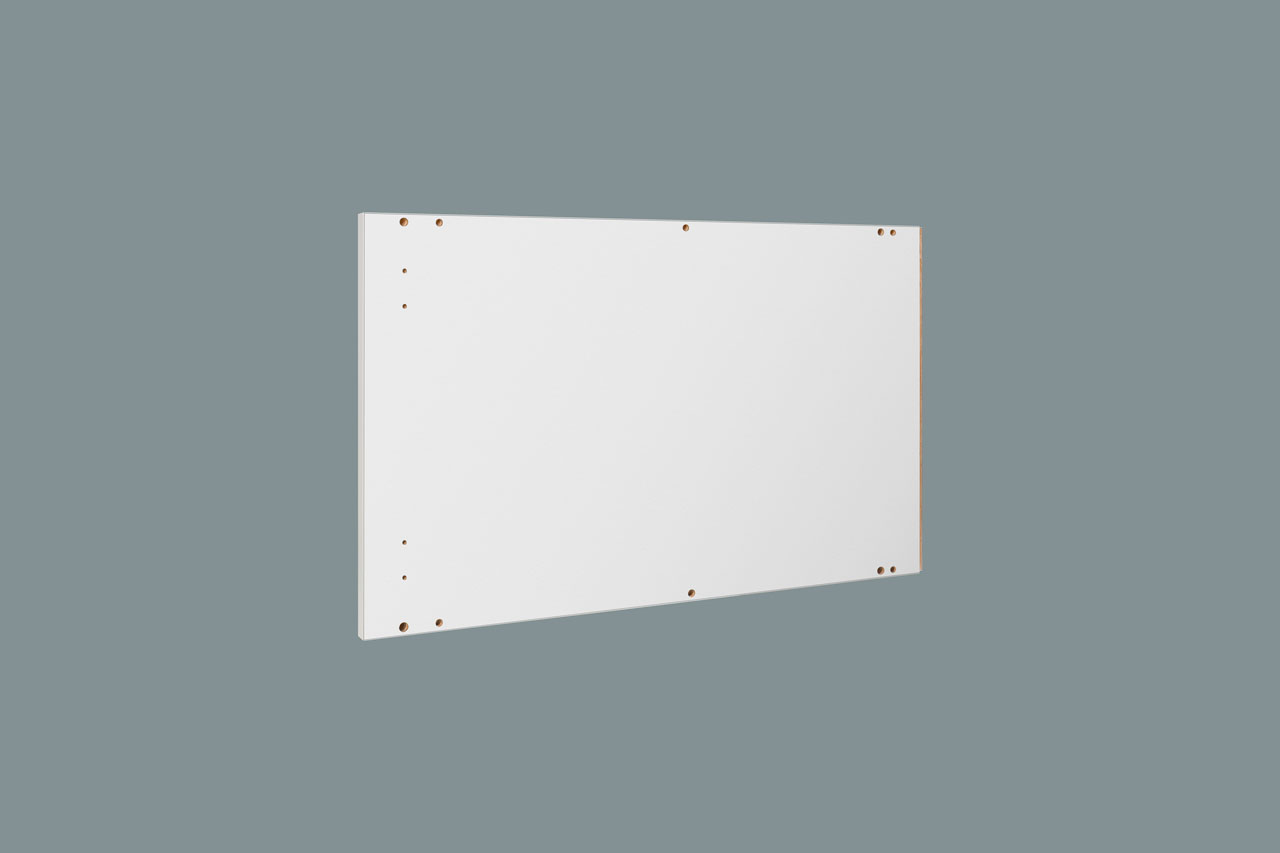

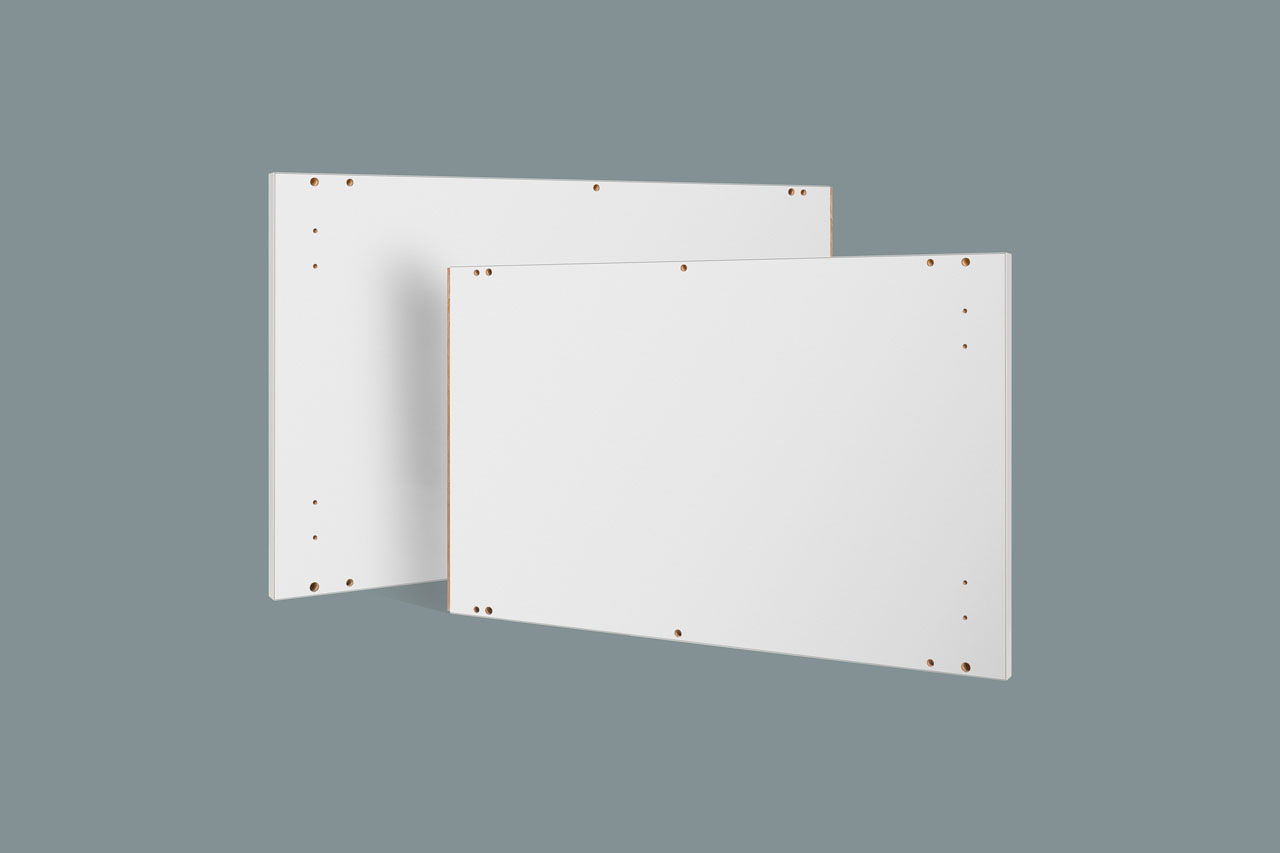

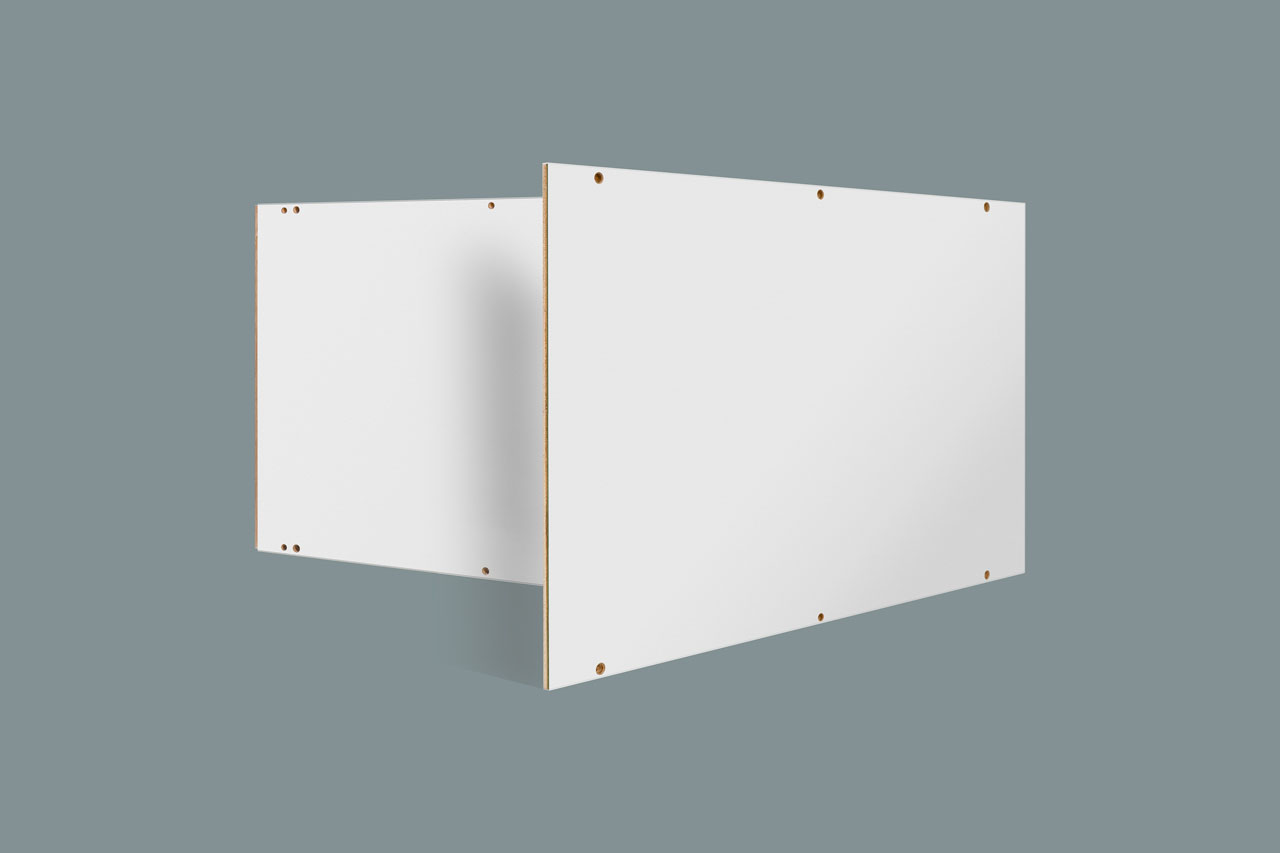

KISD2412
W24 X L12 X D 0.75_ Smart Parts Panel
Panel Material: PLME0411-192S36
Edge Band: 1MM White matte PVC
Description: 12"H x 24"D （RW）Wall Cabinet Parts _ Side Panel
Edged: 3-Side (2W1L)

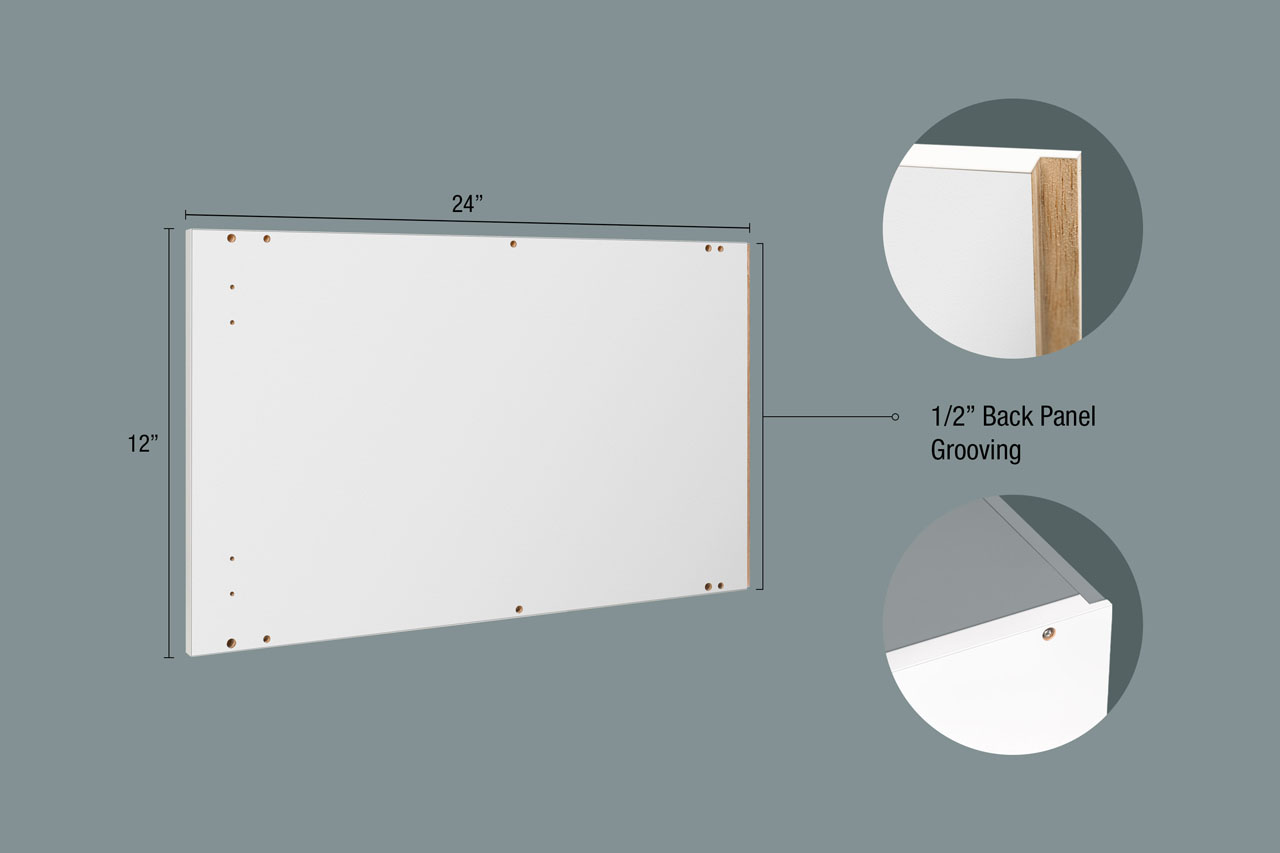

Dimensions
| Thickness (inch) | Width (inch) | Length (inch) |
|---|---|---|
| 3/4 | 24 | 12 |
Product links
| Product ID | Dimension (W) | Dimension(L) |
|---|---|---|
| KISD2412 | 24" | 12" |
| KISD2415 | 24" | 15" |
| KISD2418 | 24" | 18" |
| KISD2421 | 24" | 21" |
| KISD2424 | 24" | 24" |
| KISD2427 | 24" | 27" |
| KISD2430 | 24" | 30" |
| KISD1212 | 12" | 12" |
| KISD1215 | 12" | 15" |
| KISD1218 | 12" | 18" |
| KISD1221 | 12" | 21" |
| KISD1224 | 12" | 24" |
| KISD1227 | 12" | 27" |
| KISD1230 | 12" | 30" |
| KISD1236 | 12" | 36" |
| KISD1239 | 12" | 39" |
| KISD1242 | 12" | 42" |
| KISD1248 | 12" | 48" |
| KISD1254 | 12" | 54" |
| KISD1260 | 12" | 60" |
Product Specifications

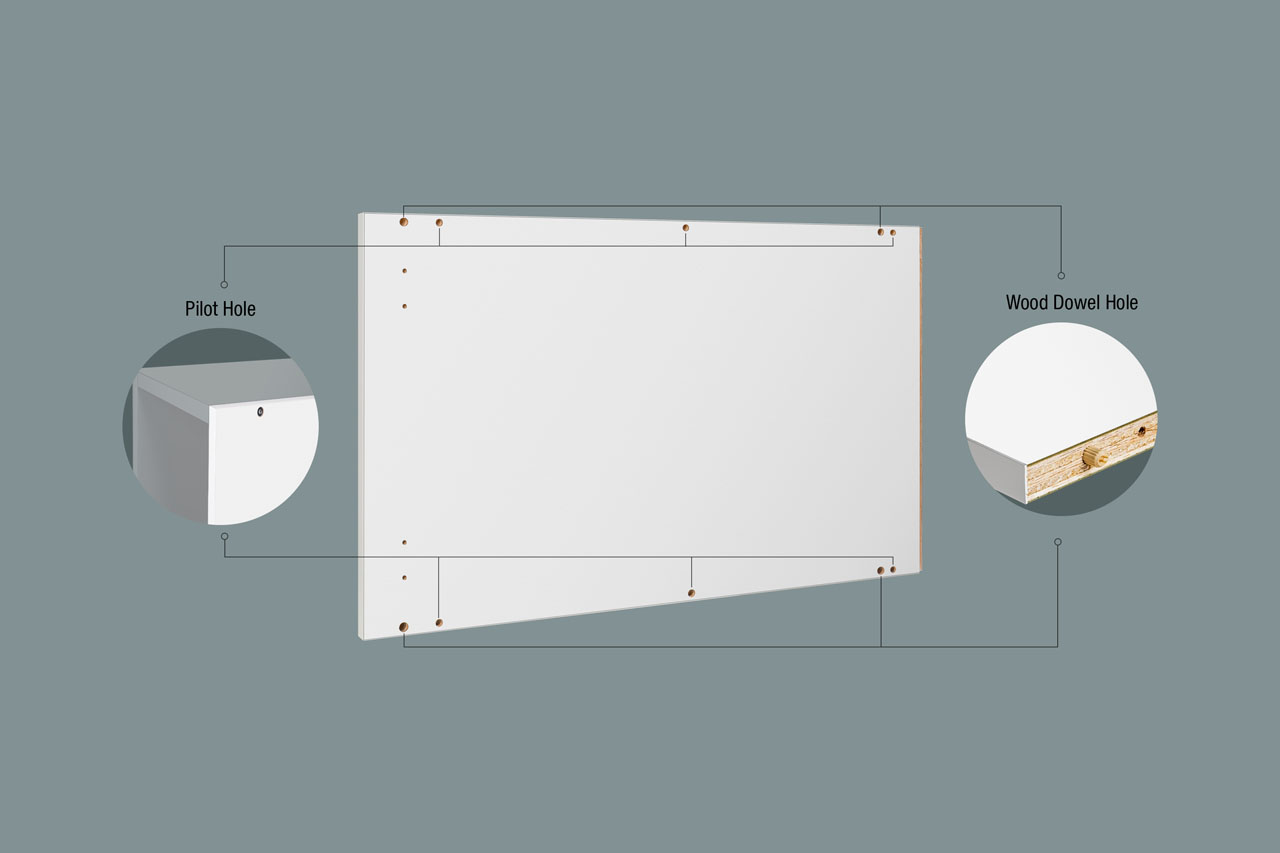

| Line Boring 8mm for Wood Dowel | YES | NO | Line Boring 4mm for Hinge Plate | YES | NO |
| Line Boring 7mm for Screw Hole | YES | NO | Line Boring 5mm for Shelf Pin | YES | NO |

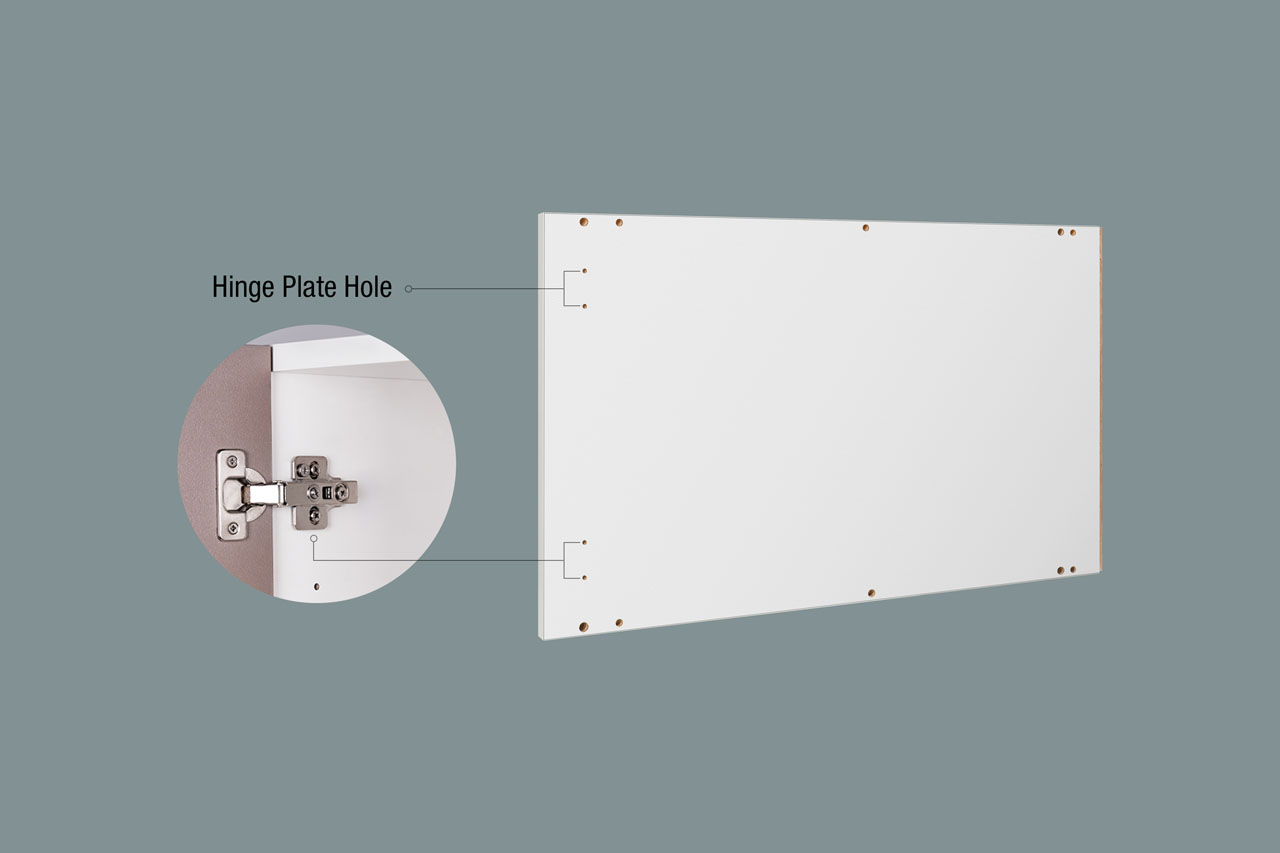

| Line Boring 4mm for Screw Hole | YES | NO | Line Boring 2.5mm for Blum / Rego UM Slide | YES | NO |
| Line Boring 2.5mm for Screw Hole | YES | NO | Grooving for 1/2" thick Back Panel | YES | NO |
